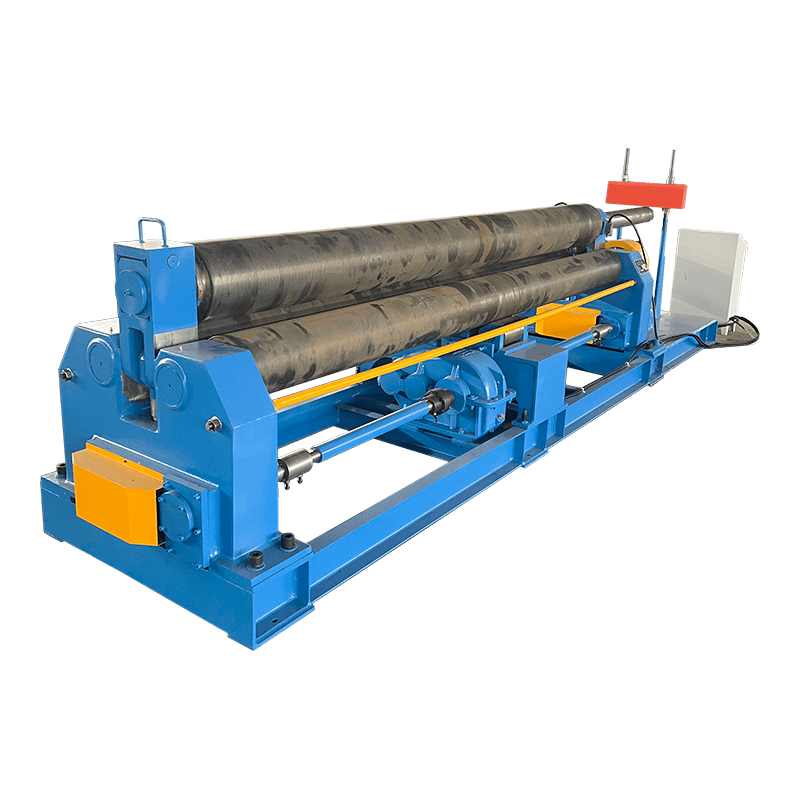

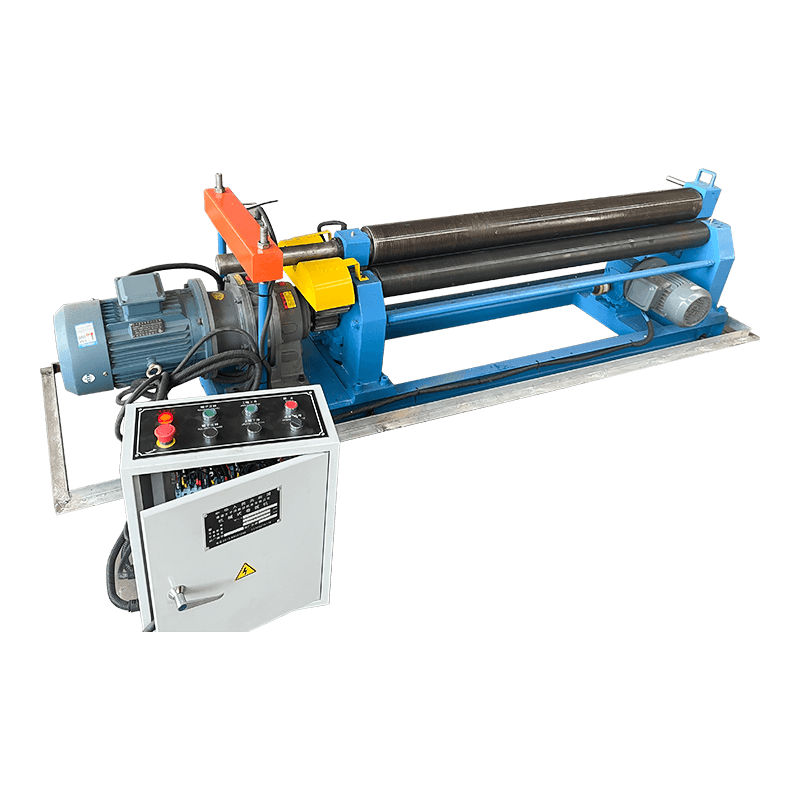

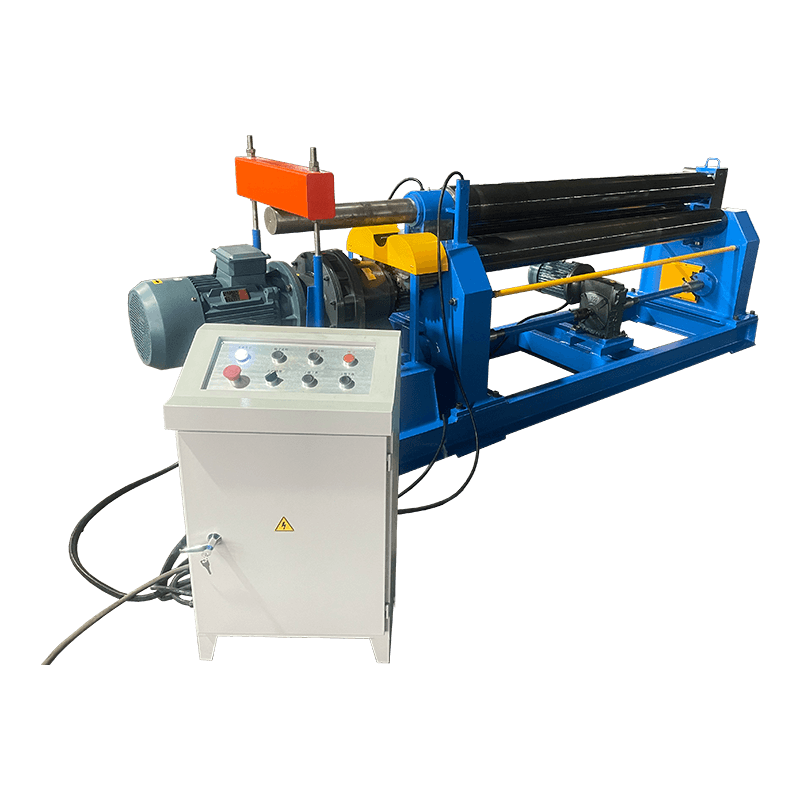

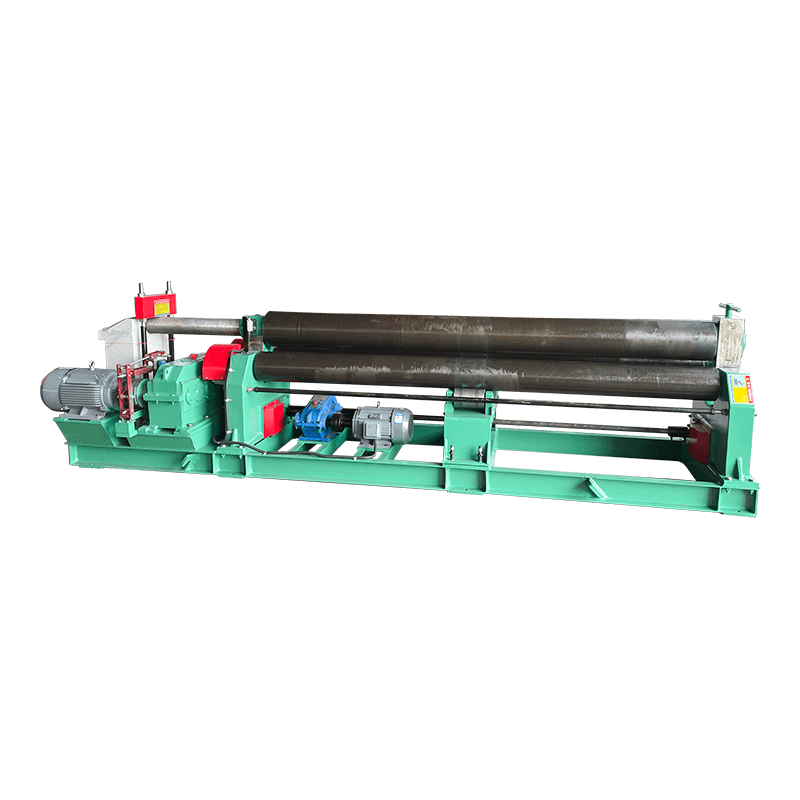

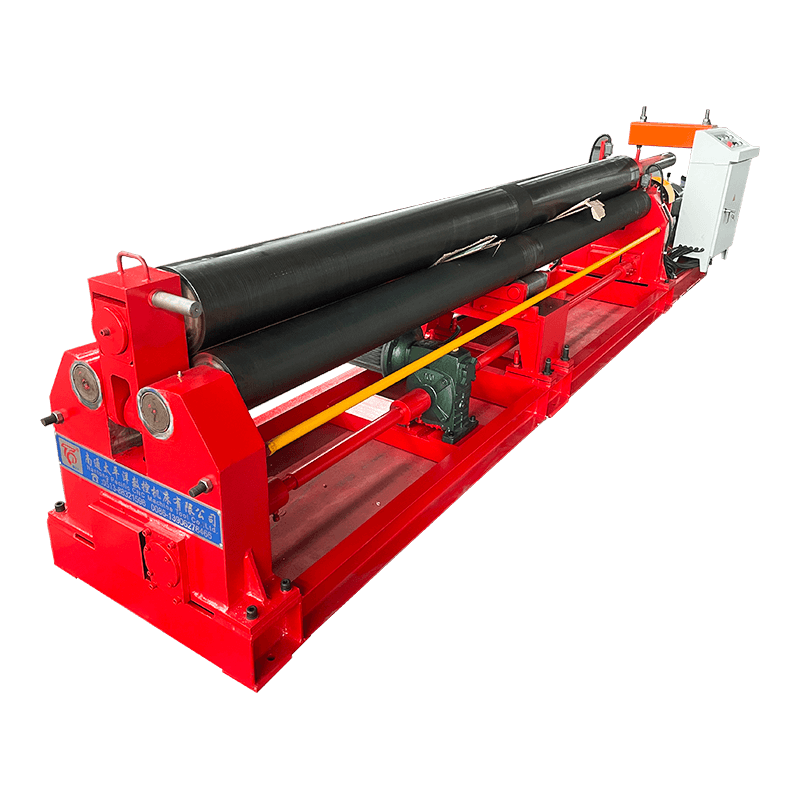

W11 Series 3-Rollers Symmetrical Mechanical Rolling Machine

The W11 series symmetrical 3-roller mechanical plate rolling machine is an upgraded version of the traditional three-roll double-pinch plate bending machine. Designed to meet the needs of modern fabrication shops for strength, ease of use, and versatility, this machine benefits from decades of experience in manufacturing heavy-duty plate rolling equipment.

Key Features
Proven Symmetrical 3-Roller Design: The symmetrical arrangement of the three rollers ensures balanced force distribution, making the machine robust, durable, and easy to operate. It is ideal for rolling cylindrical shells and forming basic curved parts.

High Bending Precision: The optimized RGS design minimizes the distance between the bending points, ensuring higher forming accuracy and consistent roundness in finished workpieces.

Reliable MCS Bearing System: Each bending roller is supported by four independent bearings as standard. This MCS bearing system provides higher reliability and greater load absorption capacity, extending the machine’s service life.

Enhanced Versatility for Conical Forming: The bearing system also allows for a wider range of side roller tilting angles, significantly improving versatility when rolling conical workpieces.

Cost-Effective & Low Maintenance: As a mechanical type rolling machine, the W11 series offers an economical solution with fewer complex hydraulic components, resulting in lower maintenance requirements and reliable performance.

Applications
This symmetrical 3-roller mechanical rolling machine is widely used in industries including:

  • Pressure vessel and boiler manufacturing
  • Steel structure and tank fabrication
  • Piping and ductwork production
  • General metalworking workshops

Inquiry

Product Description

Specifications



Model

Thickness of
coiled plate
(mm)

Width of
coiled plate
(mm)

Plate Yield
Strength
(Mpa)

Diameter of
Upper Roller
(mm)

Main Motor
(KW)

Weight
(KG)

Overall
Dimensions
LXWXH
(mm)

W11-4X1500

1-4

1500

245

140

3

1500

2800X800X1100

W11-4X2000

1-4

2000

245

160

4

1800

3400X800X1100

W11-6X2000

1-6

2000

245

170

4

2000

3600X900X1350

W11-6X2500

1-6

2500

245

190

5.5

2600

3600X900X1350

W11-8X2000

1-8

2000

245

190

5.5

2800

3600X1000X1350

W11-8X2500

2-8

2500

245

220

7.5

3500

4300X1100X1400

W11-12X2000

3-12

2000

245

240

7.5

3800

3800X1100X1400

W11-12X2500

3-12

2500

245

260

11

4800

4600X1200X1450

W11-16X2000

3-16

2000

245

260

11

4600

4100X1200X1450

W11-16X2500

3-16

2500

245

280

11

5900

4800X1400X1450

W11-20X2000

3-20

2000

245

280

11

7000

4100X1200X1450

W11-20X2500

3-20

2500

245

340

15

8600

4800X1400X1450



Description and specifications given in this catalogue are subject to modification without notice.

Contact Us for More Details

Don't hesitate to contact when you need us!

SUBMIT

About
Nantong Pacific CNC Machine Tool Co., Ltd
Nantong Pacific CNC Machine Tool Co., Ltd

Nantong Pacific CNC Machine Tool Co., Ltd is a key enterprise of national machinery industry, located in Haian Economic and Technological Development Zone, where the environment is beautiful and the traffic is convenient, which facilitates the rapid establishment of communication between enterprises and customers. The enterprise is fully equipped, specializing in the production of shearing machine, bending machine, rolling machine, hydraulic press, punching machine and other products, widely used in: light industry, aviation, shipbuilding, metallurgy, instrumentation, electrical appliances, stainless steel products, construction and decoration industry. Our products sell well both at home and abroad.


As a professional China 3-Rollers Symmetrical Mechanical Rolling Machine Suppliers and W11 Series 3-Rollers Symmetrical Mechanical Rolling Machine Company, The company now has the ability to design, develop and manufacture standard series products and non-standard equipment. Products sell well throughout the country, a large number of exports to Southeast Asia, Europe, the United States and the Middle East. The company covers an area of more than 20,000 square meters, with a group of engineers and technicians with rich professional knowledge, production and testing equipment is complete. Over the years, has been committed to the research and innovation of forging machine tools, the product sales and after-sales service is sparing no effort, has in Beijing, Tianjin, Shenyang, Shandong, Zhejiang, Guangzhou, Shanghai, Hangzhou, Chengdu, Xi 'an and Jiangsu area established a more perfect set of pre-sale, sale, after-sales service in one of the branches, do our best to meet the needs of domestic and foreign customers.


In today's world full of hope and opportunities, Pacific Machine Tools and our customers go hand in hand for common development.

News
Extension of Industry Knowledge

1. Introduction to W11 Series 3-Rollers Symmetrical Mechanical Rolling Machine

The W11 Series 3-Rollers Symmetrical Mechanical Rolling Machine is a classic and widely used plate rolling equipment designed for bending metal sheets into cylindrical and arc shapes. It is especially suitable for medium-duty metal forming tasks in fabrication workshops and industrial manufacturing plants.

This machine is built on a symmetrical three-roll structure, ensuring stable operation and reliable performance. It can handle plate thicknesses ranging from 2mm to 60mm, depending on model specifications, making it a versatile solution for various industries.

Nantong Pacific CNC Machine Tool Co., Ltd is a key enterprise of national machinery industry, located in Haian Economic and Technological Development Zone, where the environment is beautiful and the traffic is convenient, which facilitates the rapid establishment of communication between enterprises and customers. The enterprise is fully equipped, specializing in the production of shearing machine, bending machine, rolling machine, hydraulic press, punching machine and other products, widely used in: light industry, aviation, shipbuilding, metallurgy, instrumentation, electrical appliances, stainless steel products, construction and decoration industry. Our products sell well both at home and abroad.

2. Design Concept and Engineering Advantages

(1) Strength and Durability

The W11 series is designed for heavy-duty applications. Its welded steel structure ensures high rigidity and long-term stability even under continuous operation.

(2) User-Friendly Operation

The machine is designed for easy operation, allowing operators to achieve accurate results with minimal training, improving workshop efficiency by up to 30%.

(3) Versatile Applications

It supports a wide range of rolling operations including cylindrical, conical, and arc bending, making it suitable for diverse industrial needs.

ERMAK's engineering experience in heavy-duty machines is fully integrated into the W11 design, ensuring high reliability and performance consistency.

3. Key Technical Innovations

(1) RGS Precision Design

The RGS design minimizes the distance between bending points, improving bending accuracy by up to 15%–20% compared to conventional machines.

(2) MCS Bearing System

Each bending roll is equipped with four independent bearings, enhancing load capacity and operational stability.

(3) Cone Rolling Capability

The tilting side rolls allow efficient cone rolling, expanding the machine's versatility for complex geometries.

4. Technical Parameters Overview

Item Specification Benefit
Plate Thickness 2–60mm Wide industrial usage
Structure Type 3-Roller Symmetrical Stable and reliable forming
Precision High Accuracy Design Improved product consistency
Technical specifications of W11 Series 3-Rollers Symmetrical Mechanical Rolling Machine

5. Industrial Applications

The W11 series is widely used in:

  • Steel structure fabrication
  • Boiler manufacturing
  • Shipbuilding industry
  • Pressure vessel production

6. FAQs

Q1: What is the main advantage of W11 series machine?

It offers high precision, durability, and versatility for various plate rolling applications.

Q2: Can it perform cone rolling?

Yes, the tilting side rolls allow efficient cone and complex shape forming.

Q3: What industries commonly use this machine?

It is widely used in shipbuilding, boilers, steel structures, and heavy fabrication industries.
