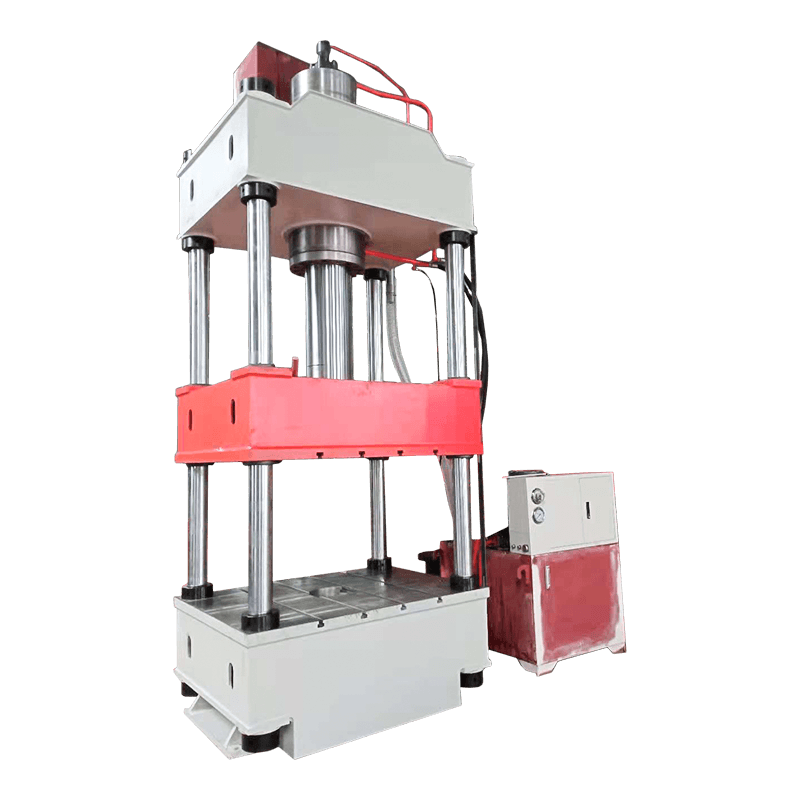

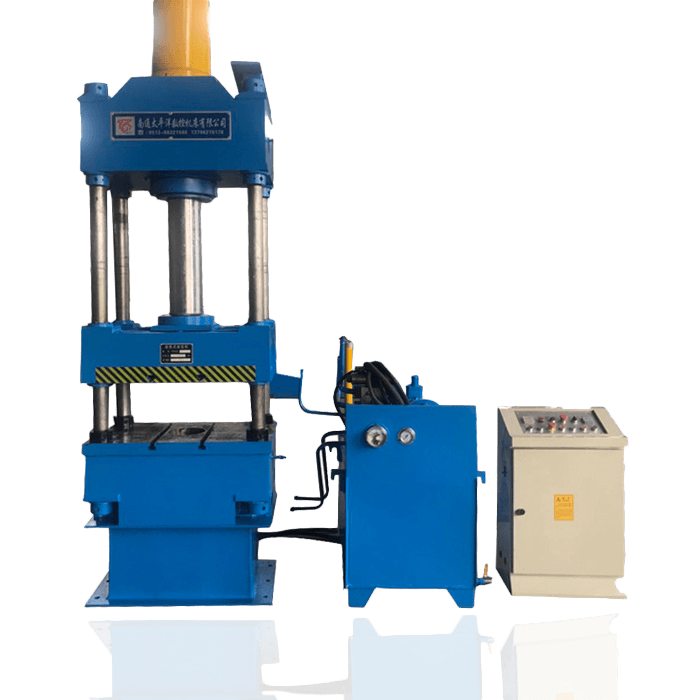

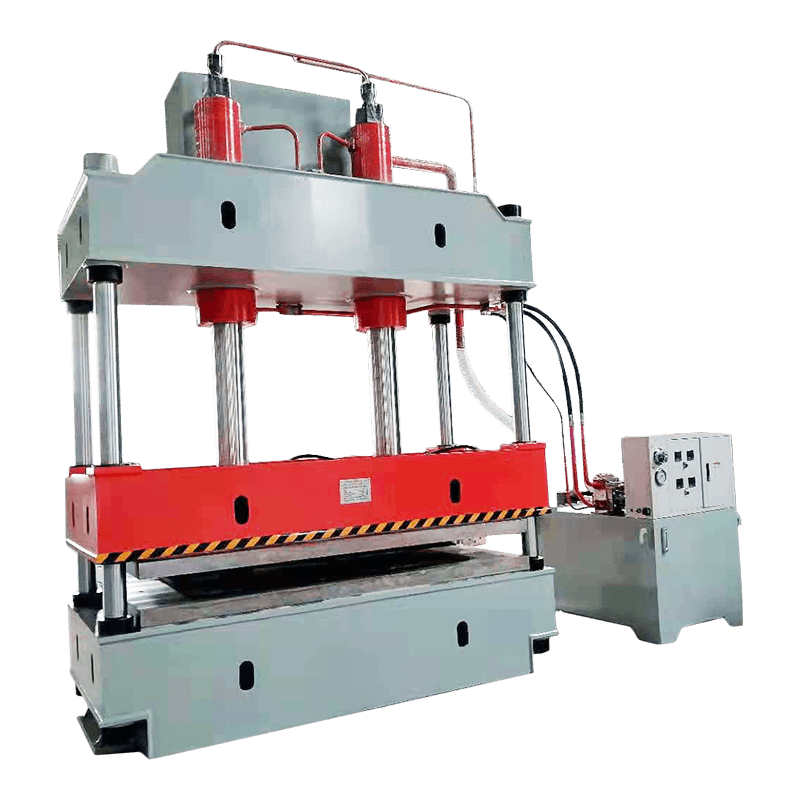

Y32 series four-column hydraulic press machine

The Y32 series four-column hydraulic press is a versatile and cost-effective industrial forming machine, widely used for metal stamping, forming, pressing, and assembly operations in various manufacturing industries. Featuring a robust 3-beam 4-column structure and reliable hydraulic control, this press offers stable performance and flexible operation for a wide range of applications.

Performance Characteristics
Optimized Structural Design: Adopts a computer-optimized 3-beam 4-column structure, combining simplicity with high rigidity, strength, and an excellent performance-to-price ratio.

Advanced Hydraulic System: Equipped with a cartridge valve integrated unit for the hydraulic control system, ensuring reliable and durable operation with minimal hydraulic shock. The system features shorter connecting pipelines and fewer leakage points, improving efficiency and reducing maintenance needs.

Independent Electrical Control: The independent electrical control system is reliable, user-friendly with clear audio-visual feedback, and designed for convenient maintenance.

Flexible Operation Modes: Features a centralized button control system, offering adjustment, manual, and semi-automatic operation modes to suit different production needs.

Forming Process Options: Users can select between fixed-stroke forming or fixed-pressure forming processes via the control panel, with pressure hold and time delay functions for precise forming control.

Adjustable Working Parameters: The operating force, no-load travel, low-speed movement, and travel range can all be adjusted according to specific technological requirements, providing high flexibility for diverse workpiece processing.

Applications
This four-column hydraulic press is suitable for:

  • Metal stamping, deep drawing, and forming
  • Press fitting and assembly operations
  • Powder metallurgy compaction
  • Straightening and correction of metal parts
  • Plastic and rubber molding

Inquiry

Product Description

Applicable field

Suitable for drawing, punching (including optional punching buffer), bending, flanging, cold extrusion and other stamping processes for metal materials, or for press forming of correction, press-fit, powder products and abrasive products. And plastic products, compression molding of insulating materials.

Optional accessories

• Mobile workbench
• Blanking buffer device
• Photoelectric protection device
• Stroke, pressure, speed digital display, numerical control device
• Touch industrial display
• Hydraulic system heating and cooling device
• Feeding device
• Slider safety plug
• Mold heating and temperature control device
• PLC programmable controller

Main Parameters



Description

Specifications

Type

Y32-40

Y32-63

Y32-100

Y32-160

Y32-160C

Y32-200

Y32-315

Y32-400

Y32-500

Y32-500C

Y32-630

Y32-800

Y32-1000

Normal pressure

kN

400

630

1000

1600

1600

2000

3150

4000

5000

5000

6300

8000

10000

Maximum liquid
working pressure

kN

25

25

25

25

25

25

25

25

25

25

25

25

25

Slider travel

mm

450

500

600

700

700

700

800

800

900

900

900

900

900

Maximum
opening height

mm

750

750

880

1000

1000

1100

1250

1250

1500

1500

1500

1600

1600

Top output

kN

120

190

190

400

400

400

630

630

1000

1000

1000

1600

1600

Ejection stroke

kN

160

200

200

200

200

250

300

300

350

350

350

350

350

Ram speed

Idie stroke

mm

160

180

120

100

100

100

100

100

100

100

80

80

80

Pressing

mm/s

20-30

15-20

10-14

10-15

10-15

10-15

8-12

6-10

10-15

10-15

8-10

12-15

10-15

Return

mm/s

120

100

120

70

70

70

60

55

70

70

60

70

70

Table size

L-R

mm

500

580

720

720

1000

1000

1260

1240

1400

2400

1600

1600

1600

F-B

mm

460

500

580

620

800

900

1200

1200

1400

1400

1600

1600

1600

Motor capacity

kW

5.5

7.5

7.5

11

11

15

22

22

2*22

2*22

2*22

45+22

2*45

Overall
Dimensions

mm

1800
X400
X750

2000
X1300
X2850

2600
X1400
X3250

2800
X1500
X3400

2900
X1600
X3400

3000
X1600
X3800

3100
X1600
X4200

3100
X1600
X4850

4000
X2100
X5300

4200
X2200
X5300

4300
X2100
X5600

5800
X2800
X5700

6400
X2900
X6100

Weight

KG

2500

3000

4000

7000

7800

9200

1400

1700

2500

30000

33500

60000

72000



Description and specifications given in this catalogue are subject to modification without notice.

Contact Us for More Details

Don't hesitate to contact when you need us!

SUBMIT

About
Nantong Pacific CNC Machine Tool Co., Ltd
Nantong Pacific CNC Machine Tool Co., Ltd

Nantong Pacific CNC Machine Tool Co., Ltd is a key enterprise of national machinery industry, located in Haian Economic and Technological Development Zone, where the environment is beautiful and the traffic is convenient, which facilitates the rapid establishment of communication between enterprises and customers. The enterprise is fully equipped, specializing in the production of shearing machine, bending machine, rolling machine, hydraulic press, punching machine and other products, widely used in: light industry, aviation, shipbuilding, metallurgy, instrumentation, electrical appliances, stainless steel products, construction and decoration industry. Our products sell well both at home and abroad.


As a professional China Y32 series four-column hydraulic press machine Manufacturers and Y32 series four-column hydraulic press machine Factory, The company now has the ability to design, develop and manufacture standard series products and non-standard equipment. Products sell well throughout the country, a large number of exports to Southeast Asia, Europe, the United States and the Middle East. The company covers an area of more than 20,000 square meters, with a group of engineers and technicians with rich professional knowledge, production and testing equipment is complete. Over the years, has been committed to the research and innovation of forging machine tools, the product sales and after-sales service is sparing no effort, has in Beijing, Tianjin, Shenyang, Shandong, Zhejiang, Guangzhou, Shanghai, Hangzhou, Chengdu, Xi 'an and Jiangsu area established a more perfect set of pre-sale, sale, after-sales service in one of the branches, do our best to meet the needs of domestic and foreign customers.


In today's world full of hope and opportunities, Pacific Machine Tools and our customers go hand in hand for common development.

News
Extension of Industry Knowledge

1. Introduction to Y32 Series Four-Column Hydraulic Press Machine

The Y32 Series Four-Column Hydraulic Press Machine is a high-performance metal forming equipment widely used in stamping, pressing, stretching, and molding processes. It is especially suitable for heavy-duty industrial applications that require stable pressure and high precision forming.

With a four-column structure design, the machine ensures excellent stability and precision. It can deliver pressure ranging from 100 tons to 2000 tons, making it suitable for both medium and large-scale metal forming production lines.

Nantong Pacific CNC Machine Tool Co., Ltd is a key enterprise of national machinery industry, located in Haian Economic and Technological Development Zone, where the environment is beautiful and the traffic is convenient, which facilitates the rapid establishment of communication between enterprises and customers. The enterprise is fully equipped, specializing in the production of shearing machine, bending machine, rolling machine, hydraulic press, punching machine and other products, widely used in: light industry, aviation, shipbuilding, metallurgy, instrumentation, electrical appliances, stainless steel products, construction and decoration industry. Our products sell well both at home and abroad.

2. Performance Characteristics of Y32 Hydraulic Press

  • Computer optimized design with 3-beam, 4-column structure ensures high rigidity and cost efficiency.
  • Cartridge valve hydraulic system reduces leakage points and improves reliability.
  • Short hydraulic pipeline design minimizes pressure loss and increases efficiency.
  • Independent electrical control system ensures easy maintenance and high safety.
  • Centralized control system supports manual, adjustment, and semi-automatic operation modes.

These features make the Y32 series one of the most reliable hydraulic press solutions in modern manufacturing.

3. Working Principle of Four-Column Hydraulic Press

(1) Hydraulic Power System

The hydraulic system generates high-pressure oil flow to drive the piston, ensuring stable and powerful pressing force during operation.

(2) Four-Column Structure Stability

The four-column guide system ensures perfect alignment of the upper and lower beams, reducing deviation and improving forming accuracy by up to 0.05mm–0.1mm.

(3) Control System Operation

Operators can choose between manual and semi-automatic modes, allowing flexible production for different manufacturing requirements.

4. Technical Parameters Overview

Item Specification Benefit
Press Force 100–2000 Tons Wide industrial application range
Structure Type 3 Beam, 4 Column High rigidity and stability
Control Mode Manual / Semi-Auto Flexible operation options
Technical specifications of Y32 Series four-column hydraulic press machine

5. Industrial Applications

The Y32 hydraulic press machine is widely used in:

  • Metal stamping and forming
  • Automotive parts manufacturing
  • Electrical appliance production
  • Aerospace and shipbuilding industries

6. FAQs

Q1: What is the main advantage of Y32 hydraulic press?

It offers high stability, strong pressure capacity, and precise forming performance for industrial applications.

Q2: What pressure range does it support?

It supports a wide range from 100 tons up to 2000 tons depending on configuration.

Q3: Is it suitable for mass production?

Yes, its semi-automatic and manual modes make it highly suitable for continuous industrial production.
