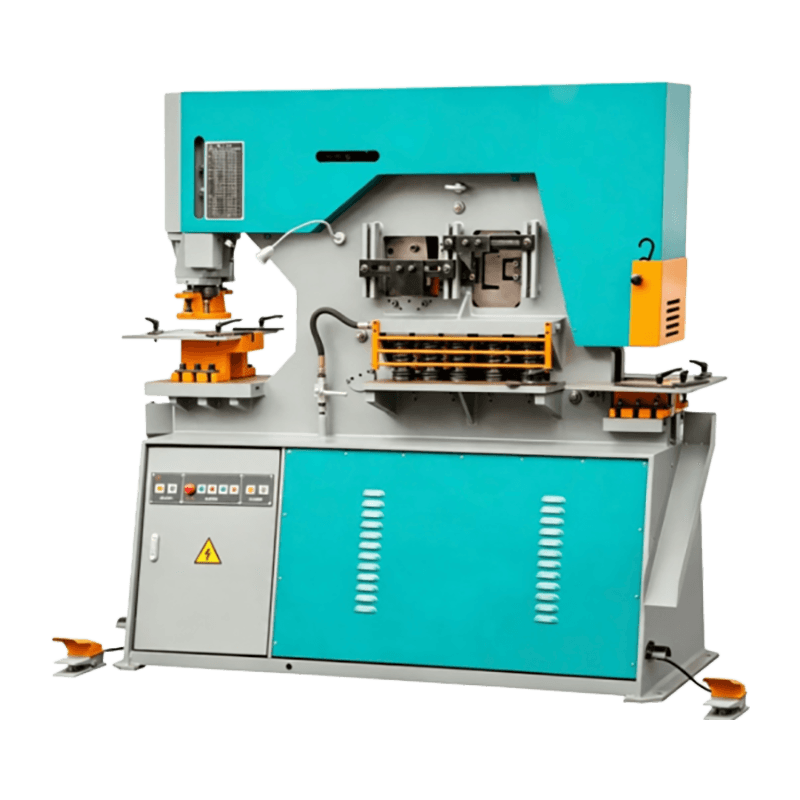

Q35Y-25 Combined Punching & Shearing Machine (Ironworker)

The Hydraulic Combined Punching & Shearing Machine (Ironworker) is a heavy-duty metalworking machine designed for efficient punching and shearing operations in industrial manufacturing and metal fabrication. It adopts a robust welded frame and hydraulic drive system, delivering stable performance for metal plate punching, shearing and notching tasks. This versatile machine is widely used in metal fabrication workshops, steel structure factories and machinery manufacturing plants.

We have both Q35Y-25 and Q35Y-20 models in stock with very competitive prices.

Looking for a reliable ironworker for your production needs? Contact us today to request a quotation, confirm technical specifications, and discuss your application requirements. Whether you are an equipment distributor, importer, or industrial end user, our team can help you evaluate which model suits your metalworking operations.

Inquiry

Product Description

NO.

NAME

VALUE

1

Shearing

Flat Bar
(Thickness×Width)

20×330

mm

Max Capacity

10×480

mm

Length Of Blade

485

mm

Rake Angle Of Blade

8

degress

2

Section Cutting

Dia. Of Round

50

mm

Dia. Of Square

50

mm

Type Of Channel

16



Type Of Joist

16



Equal Angel at 90°

140×12

mm

3

Notching

Thickness

13

mm

Width

57

mm

Depth

100

mm

4

Punching Hole

Thickness

20

mm

Max Diameter

30

mm

Pressure

750

kn

Throat Depth

355

mm

Max Stoke

80

mm

NO. Of Stroke

8

times/min

5

Tensile Strength

≤450

n/mm2

6

Motor

Type

Y132M-4



Power

7.5

kw

Speed

960

r/min

7

Overall Dimensions

Length

1860

mm

Width

790

mm

Height

1900

mm

8

Machine Weight

2200

kg

Q35Y-25 Technical Parameters



Item

Value

Punching Force (KN)

1200

Plate Thickness × Width for Single Cut (mm)

25 × 330

Max. Shearing Capacity (mm)

16 × 600

Plate Tensile Strength (N/mm²)

≤450

Shear Angle (deg)

8°

Ram Stroke (mm)

80

Strokes per Minute

8

Throat Depth (mm)

400

Max. Punching Capacity (mm)

Φ35 × 25

Main Motor Power (KW)

11

Overall Machine Length (mm)

2355

Overall Machine Width (mm)

960

Overall Machine Height (mm)

2090

Machine Weight (kg)

4000
