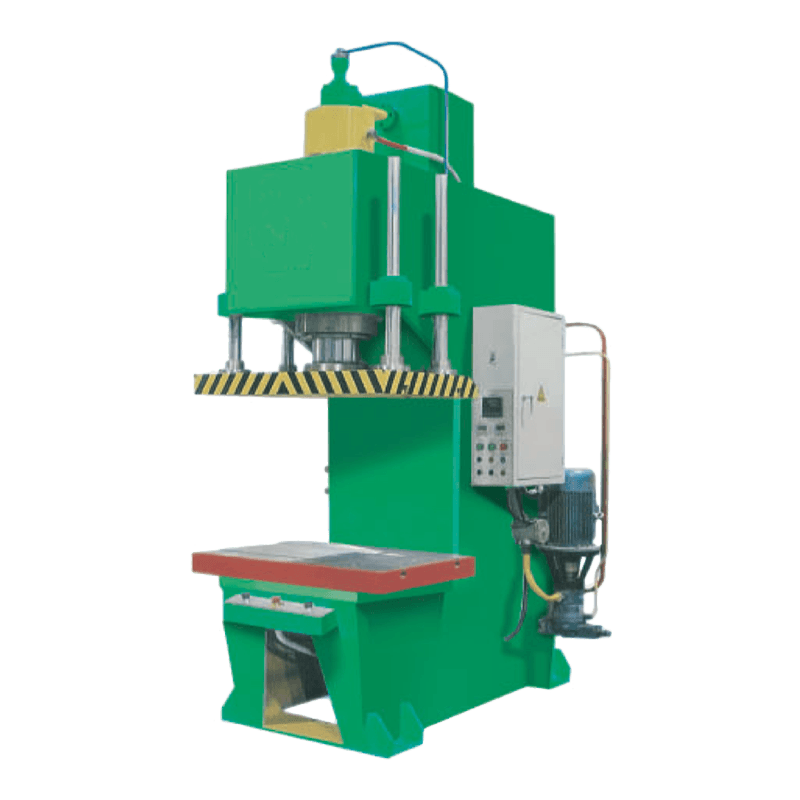

Y41 single-column hydraulic press

The Y41 series single-column hydraulic press is a versatile C-frame hydraulic machine designed for straightening, pressing, forming, and assembly operations. Widely used in metalworking, machinery repair, and component manufacturing, this press offers reliable performance, simple operation, and excellent cost-effectiveness for medium-duty applications.

Performance Characteristics
Rigid C-Type Single-Column Frame: The machine body adopts a heavy-duty C-type single-arm (single-column) structure, fabricated from thick steel plates. After welding, the frame undergoes tempering and aging treatment to eliminate internal stress, ensuring long-term stability and preventing permanent deformation under continuous load.


Integrated Hydraulic System: The hydraulic system is fully enclosed and integrated within the machine body, featuring a compact and clean layout. This design saves space, reduces oil contamination, and simplifies maintenance, while minimizing hydraulic shock for smooth operation.


Flexible Operation Modes: The press supports multiple working modes, including manual jog and semi-automatic operation, allowing adjustment of pressure, stroke, and speed according to different workpiece requirements.


High Precision & Repeatability: With precise guide mechanisms and reliable hydraulic control, the Y41 press delivers consistent pressing accuracy, making it ideal for both single-piece and small-batch production.


Open Design for Easy Access: The C-frame design provides unobstructed access to the work area, making loading, unloading, and tool setup quick and convenient, even for long or complex workpieces.

Typical Applications

Shaft, bar, and profile straightening
Bearing, bushing, and sleeve press-fitting
Metal sheet bending, embossing, and shallow forming
Riveting, staking, and mechanical assembly
Powder metallurgy and non-metal material compacting

Inquiry

Product Description

Main Parameters



Specifications

Unit

Model

Y41-6.3

Y41-10

Y41-16

Y41-25

Y41-40

Y41-63

Y41-100

Y41-160

Y41-200

Y41-315

Y41-400

Y41-500

Y41-630

Y41-800

Rated pressure

KN

63

100

160

250

400

630

1000

1600

2000

3150

4000

5000

6300

8000

Max.hydraul
ic pressure

Mpa

8

12.5

20

16

25

25

25

25

25

25

25

25

25

25

Stoke of slide

mm

250

250

400

400

400

500

600

700

700

800

800

900

900

900

Daylight

mm

400

400

500

630

630

750

800

900

1000

1100

1250

1300

1500

1500

Throat depth

mm

200

200

250

350

350

320

400

420

450

460

600

1000

1500

1500

Speed of
slide

Empty

descending

mm/s







80

80

120

100

80

80

80

80

80

80

80

Pressing

mm/s

18 〜20

18 〜20

18 〜20

18 〜20

18 〜20

18 〜20

15 〜20

10 〜12

10 〜15

8〜10

8〜10

10 〜15

6〜10

5〜8

Return

mm/s

55

50

50

75

75

100

100

70

70

60

55

70

60

45

Dimensions of table

L-R

mm

440

440

500

580

700

710

800

900

900

1500

2000

2500

2500

3000

F-B

mm

380

380

450

570

570

600

700

800

900

900

1200

2000

2000

2400

Table height
above floor

mm

700

700

710

710

710

810

800

900

900

900

400

400

400

400

Dimensions of
dropping hole

mm







Φ100

Φ100

Φ100

















Motor power

KW

3

3

4

5.5

5.5

7.5

7.5

11

15

22

22

2x22

2x22

45

Overall
Dimensions

mm

1000
X850
X1950

1000
X850
X1950

1000
X900
X2000

1200
X1000
X2300

1250
X1200
X2600

1280
X1450
X2750

1400
X1900
X3050

1600
X2200
X3200

1600
X2600
X4200

1800
X3200
X4500

2300
X3900
X5000

4000
X4600
X6000

4300
X4600
X7000

5000
X4800
X7200

Weight

KG

1500

1600

1800

2300

2800

4200

6400

9000

12800

27000

44000

57000

79000

100000



Description and specifications given in this catalogue are subject to modification without notice.

Contact Us for More Details

Don't hesitate to contact when you need us!

SUBMIT

About
Nantong Pacific CNC Machine Tool Co., Ltd
Nantong Pacific CNC Machine Tool Co., Ltd

Nantong Pacific CNC Machine Tool Co., Ltd is a key enterprise of national machinery industry, located in Haian Economic and Technological Development Zone, where the environment is beautiful and the traffic is convenient, which facilitates the rapid establishment of communication between enterprises and customers. The enterprise is fully equipped, specializing in the production of shearing machine, bending machine, rolling machine, hydraulic press, punching machine and other products, widely used in: light industry, aviation, shipbuilding, metallurgy, instrumentation, electrical appliances, stainless steel products, construction and decoration industry. Our products sell well both at home and abroad.


As a professional China Y41 single-column hydraulic press Manufacturers and Y41 single-column hydraulic press Factory, The company now has the ability to design, develop and manufacture standard series products and non-standard equipment. Products sell well throughout the country, a large number of exports to Southeast Asia, Europe, the United States and the Middle East. The company covers an area of more than 20,000 square meters, with a group of engineers and technicians with rich professional knowledge, production and testing equipment is complete. Over the years, has been committed to the research and innovation of forging machine tools, the product sales and after-sales service is sparing no effort, has in Beijing, Tianjin, Shenyang, Shandong, Zhejiang, Guangzhou, Shanghai, Hangzhou, Chengdu, Xi 'an and Jiangsu area established a more perfect set of pre-sale, sale, after-sales service in one of the branches, do our best to meet the needs of domestic and foreign customers.


In today's world full of hope and opportunities, Pacific Machine Tools and our customers go hand in hand for common development.

News
Extension of Industry Knowledge

1. Introduction to Y41 Single-Column Hydraulic Press Machine

The Y41 Single-Column Hydraulic Press Machine is a compact and efficient solution designed specifically for small workshops and precision metal forming tasks. With its C-type single-arm structure, it provides excellent accessibility and is ideal for punching, pressing, straightening, and light forming operations.

This machine is widely used in small-scale manufacturing environments where space is limited but precision and reliability are essential. Typical pressure capacity ranges from 10 tons to 200 tons, making it suitable for flexible production needs.

Nantong Pacific CNC Machine Tool Co., Ltd is a key enterprise of national machinery industry, located in Haian Economic and Technological Development Zone, where the environment is beautiful and the traffic is convenient, which facilitates the rapid establishment of communication between enterprises and customers. The enterprise is fully equipped, specializing in the production of shearing machine, bending machine, rolling machine, hydraulic press, punching machine and other products, widely used in: light industry, aviation, shipbuilding, metallurgy, instrumentation, electrical appliances, stainless steel products, construction and decoration industry. Our products sell well both at home and abroad.

As a professional China Y41 single-column hydraulic press Manufacturers and Y41 single-column hydraulic press Factory, the company provides both standard and customized solutions to meet different industrial requirements.

2. Performance Characteristics of Y41 Hydraulic Press

(1) C-Type Single Arm Structure

The open C-type structure allows easy loading and unloading of workpieces, improving operational efficiency by up to 25% compared to closed-frame machines.

(2) Welded Steel Body with Heat Treatment

The machine body is made of welded steel structure and undergoes tempering aging treatment to ensure long-term stability without deformation.

(3) Integrated Hydraulic System

The hydraulic system is installed inside the machine body, reducing space occupation and improving safety and maintenance convenience.

3. Application Advantages in Small Workshops

  • Compact structure suitable for limited workshop space
  • Easy operation requiring minimal operator training
  • Cost-effective solution for small-scale production
  • High precision for punching and pressing operations

In real production cases, small workshops using Y41 machines reported a reduction in production time by approximately 18%–30% due to improved workflow efficiency.

4. Technical Parameters Overview

Item Specification Benefit
Press Capacity 10–200 Tons Flexible for small and medium tasks
Structure C-Type Single Column Easy operation and accessibility
Hydraulic System Internal Integrated Type Space saving and safer operation
Technical specifications of Y41 single-column hydraulic press machine

5. Common Applications

The Y41 hydraulic press machine is widely used in:

  • Small metal fabrication workshops
  • Auto parts maintenance and repair
  • Electrical component pressing
  • Hardware tool manufacturing

6. FAQs

Q1: What is the main advantage of Y41 single-column hydraulic press?

Its compact structure and easy operation make it ideal for small workshops with limited space and diverse processing needs.

Q2: Is the machine suitable for heavy-duty production?

It is mainly designed for light to medium-duty applications, with a capacity range of 10–200 tons.

Q3: How long is the service life?

With proper maintenance, the machine can operate reliably for over 10 years due to its heat-treated welded structure.
